Key Features & Technical Specifications

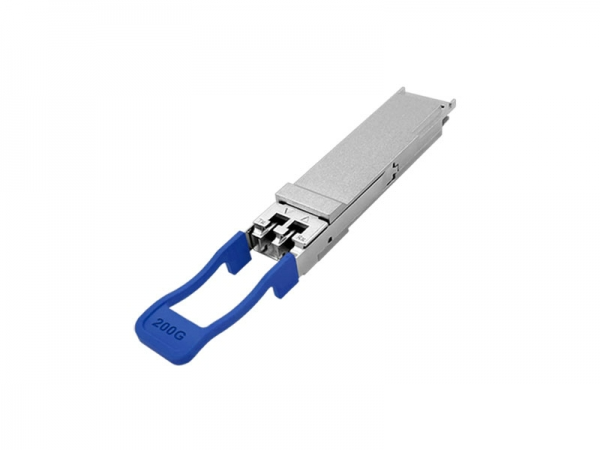

Hot-Pluggable QSFP56 Form Factor: Allows for seamless, hot-swappable installation and maintenance without powering down network switches.
Advanced 200G PAM4 DSP: Features a high-performance, integrated digital signal processor (DSP) utilizing 4-channel PAM4 modulation.
High aggregate Bandwidth: Supports aggregate bit rates up to 212.5Gb/s for massive data throughput.
200GAUI-4 Electrical Interface: Ensures high-speed electrical compliance and excellent signal integrity with leading-edge networking hardware.
Built-in Digital Diagnostics (DDM/DOM): Integrated diagnostic functionality enables real-time monitoring of optical power, temperature, and voltage via the I2C interface.
Commercial Reliability: Engineered with a single 3.3V power supply and optimized to operate safely within commercial case temperatures (0°C to 70°C).
Target Applications
High-Density 200G Ethernet: Ideal for core switch, router, and transport network connectivity.
Hyperscale Data Centers: Built for enterprise cloud networking, storage area networks (SAN), and spine-leaf architectures.
Next-Gen 5G Back-haul: Optimizes high-capacity backhaul infrastructure for 5G telecommunication networks.
Product Ordering Information
Whether you require short-range multi-mode fiber (MMF) links or long-haul single-mode fiber (SMF) connections up to 10km, our 200G portfolio offers optimized configurations:
| Part Number | Form Factor & Type | Data Rate | Wavelength | Reach/Media | Optical Connector |
|---|---|---|---|---|---|
| QSFP56-200G-SR4 | QSFP56 SR4 | 200G | 850nm | 100m over MMF | MPO |
| QSFP56-200G-DR4 | QSFP56 DR4 | 200G | 1310nm | 500m over SMF | MPO |
| QSFP56-200G-FR4 | QSFP56 FR4 | 200G | CWDM4 | 2km over SMF | 2xLC |
| QSFP56-200G-LR4 | QSFP56 LR4 | 200G | LWDM4 | 10km over SMF | 2xLC |
