AOC & DAC Cables for Reliable Data Center Interconnects in 2026 | OPTONE

A short interconnect can stop a new rack from coming online just as effectively as a failed switch port. The usual causes are mundane: the wrong form factor was ordered, a breakout map does not match the host, a copper assembly is too stiff for the cable arm, or the cable is not accepted by the platform. AOC & DAC cables avoid the patch-panel, transceiver and fiber-jumper stack for direct equipment links, but only if you select them around the actual ports and physical path.

OPTONE supplies active optical cable and direct attach copper assemblies for switch, server, storage and network-appliance connections, covering 10G through 400G applications. The practical choice is not simply “copper for short links, optical for long links.” Port identity, lane breakout, rack geometry and platform coding all belong in the purchase decision.

Key Takeaways: How to Choose the Right AOC or DAC Cable

For in-rack links, passive DAC is often the most direct option: it is a fixed copper assembly with integrated connectors, suited to short equipment-to-equipment runs. An AOC contains optical conversion within its connector ends and carries the signal over an optical cable construction. That generally makes it the better candidate where a link must travel beyond the practical copper path or pass through dense cable management.

Do not let a nominal port speed settle the order. A QSFP-family port can be used as a native link or divided into lower-speed lanes, depending on the equipment and configuration. The cable may fit perfectly and still be unusable if its breakout arrangement or coding does not match the switch requirement. Record both endpoint models, port types, operating speed and intended topology before asking for a quote.

AOC vs. DAC Cables: Comparison by Reach, Routing, Power and Deployment

DAC and AOC assemblies solve the same basic problem—direct high-speed equipment interconnection—but they impose different constraints on an installation. A passive DAC has no active electronics in the cable. That simplicity is attractive for short server-to-switch and storage links, yet the copper construction becomes less convenient as paths get longer, more crowded or more bend-sensitive. Its thickness and stiffness can matter far more than buyers expect in a fully populated rack.

An AOC uses active electronics at the cable ends to transmit across its optical section. It requires power from the host port, unlike a passive DAC, and should be selected only after confirming the equipment supports the intended cable type. In return, AOCs are commonly chosen for longer rack-to-rack paths and routes where lower cable mass and easier handling can improve the installation. Neither category is universally better. Passive copper is a disciplined choice for genuinely short, accessible links; AOC earns its place where physical routing is the limiting factor.

Selection factor	Passive DAC	AOC
Signal medium	Fixed copper cable assembly	Optical cable with active connector ends
Best fit	Short, direct in-rack links	Longer or more demanding rack-to-rack routes
Host-port power	No active cable electronics	Active ends draw port power
Routing consideration	Copper bulk and bend behavior need planning	Often easier to manage in dense routes
Critical check	Reach, port form factor and mechanical path	Host support, coding, reach and handling path

Both are fixed-length assemblies, not field-terminated cabling. Measure the route through the cable manager, not the straight-line distance between ports. Leave enough slack for service, but do not create a coil that blocks airflow or makes the wrong cable difficult to trace later.

Step-by-Step Cable Selector for Switch, Server and Storage Links

A reliable selection process starts at the equipment faceplate and ends at the installed route. Procurement teams often receive only a requirement such as “400G cables, rack row B.” That is not enough to buy against. The same speed can appear in different form factors, and a high-density port may need a native assembly in one deployment and a fan-out assembly in another.

1. Build a link schedule. List the switch or appliance model, endpoint model, port designation, desired operating mode and quantity for every link. Include both ends of each connection.
2. Choose the physical cable family. Compare the installed reach and route with the practical use of passive DAC and AOC. Treat cable-tray transitions and cable arms as part of the route.
3. Validate before rollout. Confirm platform coding, breakout mapping and compatibility requirements. Test representative links before the full deployment arrives on site.

1. Identify Port Form Factor, Ethernet Speed and Breakout Requirement

Read the port label and the vendor documentation, then identify the operating mode, not merely the cage shape. SFP+ is commonly used for 10G links. QSFP+ applies to 40G applications, while higher-density deployments may use QSFP-DD. A QSFP-to-SFP assembly is a breakout product, so its physical ends and lane arrangement must correspond to a host configuration that supports breakout. A switch port set to a native mode will not become a fan-out port because the cable has multiple ends.

2. Confirm Link Topology, Required Reach, Platform Coding and Cable Routing

Next, determine whether the cable connects a server NIC, storage controller, top-of-rack switch or another network appliance. Capture the exact hardware vendor at each end. Then walk the route: front-to-rear, side-to-side, through a vertical manager, or across racks. This is where “short” copper links become awkward. Select a length that follows the installed path without placing sustained strain on the connector latch or forcing bends at the cage entry.

AOC and DAC Form Factors for 10G to 400G Network Deployments

Form factor is the first physical compatibility gate. A cable connector must fit the host cage, but that is only the beginning. The host also has to recognize the assembly and operate the port in the intended mode. OPTONE’s AOC and DAC cable range includes SFP+ AOC, passive DAC, 40G QSFP+ AOC, QSFP-to-SFP assemblies and QSFP-DD breakout assemblies for 10G to 400G interconnect requirements.

Buyers sometimes substitute terms loosely—calling any QSFP cable a “40G cable,” for example. That shortcut causes trouble in high-density buildouts. QSFP+ and QSFP-DD are distinct form-factor families, and a breakout is a specific lane arrangement rather than a cosmetic connector variation. Put the connector family, endpoint format and breakout direction in the line-item description. “QSFP to SFP” alone is not a complete engineering requirement.

SFP+ AOC and Passive DAC for 10G Server-to-Switch and Storage Connections

SFP+ AOC and passive DAC assemblies are common choices for direct 10G links between servers, top-of-rack switches and storage hardware. Passive DAC is attractive where the route stays short and accessible. SFP+ AOC is better considered when cable routing, reach or rack layout makes copper less convenient. Check that both the NIC or controller and the switch port are intended to run the planned 10G mode. A storage link deserves the same compatibility discipline as a network uplink; an accepted link that intermittently drops under traffic is not an acceptable deployment.

QSFP+, QSFP-to-SFP and QSFP-DD Breakout Assemblies for Higher-Density Links

QSFP+ AOC assemblies support 40G application layouts, while QSFP-to-SFP and QSFP-DD breakout assemblies address ports that are configured to split into lower-speed links. The physical fan-out must reach the correct endpoint ports without crossing over cable-management channels or placing tension on the branch legs. Confirm which end is the aggregate end and which ends are the breakout ends before ordering. It sounds obvious; on a row of pre-labeled cables, reversed assumptions can consume an installation shift.

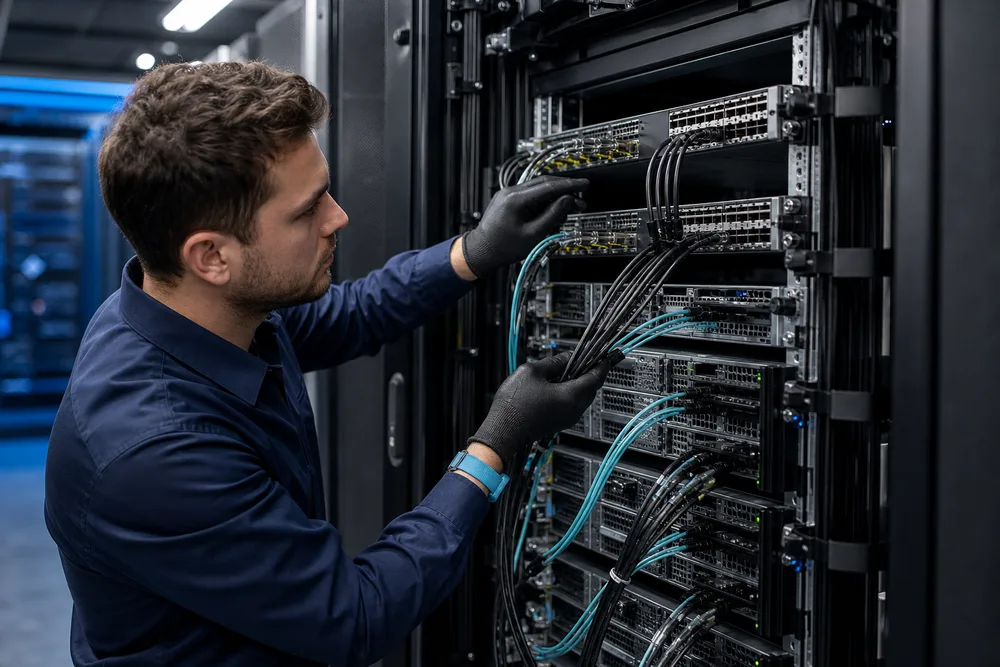

Selecting Cable Length and Routing for In-Rack and Rack-to-Rack Connections

Length selection should start with a tape measure and a route sketch. Measure from connector to connector along the intended path, including the exit from each device, horizontal and vertical managers, cable arms, and the approach to the destination port. Do not measure across open air. The direct line may look tidy on a drawing but can be impossible once doors, rails and adjacent cable bundles are installed.

Passive DAC needs especially close attention in packed racks. The assembly can be physically less forgiving than an optical cable, and a dense bundle of copper may make future moves, adds and changes unpleasant. Avoid tight turns at the connector, pinch points under cable-management covers and unsupported cable weight hanging from a port. AOC is often easier to route through congested paths, but it is still a pre-terminated assembly: protect the connector ends during staging and do not pull it by the cable into a sharp edge.

Use length tiers that match your actual rack designs rather than buying one generous length for every link. Excess cable compromises traceability and airflow. Too little slack turns a routine server replacement into a cable replacement. For repeat environments, document approved route lengths by rack position and order custom AOC and DAC cable assemblies against that documented standard.

OPTONE OEM-Compatible Coding, Compatibility Testing and ISO 9001 Quality Process

OPTONE OEM-Compatible Coding and Compatibility Testing is the process used to align a cable assembly with the host-platform requirements stated for an order, then verify its expected operation before shipment. In practical terms, the connector-side electronics present the identification information the host uses to assess an attached assembly. The cable is checked against the applicable platform requirement rather than treated as an interchangeable, anonymous commodity. This matters with systems from Cisco, Arista, Juniper, Huawei, Dell, HPE and NVIDIA/Mellanox, where buyers commonly require a cable coded for a named platform.

Compatibility is not a substitute for correct design. It cannot correct a QSFP-DD port configured for a different breakout mode, a disallowed cable type, or a link that exceeds the intended use of the selected assembly. Give OPTONE the endpoint models, port roles and desired link behavior at enquiry stage. That lets coding and compatibility checks address the actual deployment.

OPTONE Technology Limited was founded in Shenzhen in 2003 and states ISO 9001 certification for its quality system. The company provides a three-year warranty for this cable category. For volume projects, retain the approved sample and the documented coding request with the purchase record. It is the cleanest way to prevent a later replenishment order from differing from the installed baseline.

Custom AOC and DAC Cable Procurement: Lengths, Labeling, Packaging, MOQ and Lead Time

Custom procurement works best when you turn field information into a controlled line-item specification. State the cable family, form factor at each end, speed application, breakout direction where relevant, requested length, coding requirement, quantity and endpoint models. If the cables will be installed by a third-party contractor, add a label convention that identifies both endpoints or a unique link ID. A cable marked only with a generic part number adds no value during a midnight fault isolation exercise.

OPTONE offers custom lengths, private labeling and volume packaging. Those options should be discussed before a purchase order is released, not after standard stock has been allocated. Ask about minimum order quantity and lead time for the exact combination you need; both can vary with cable construction, length, coding, labeling and project volume. For staged rollouts, specify whether packaging should follow rack, row, link group or site shipment. Site-based kits reduce sorting errors, especially for breakouts with several branches.

Request a first-article sample where the application is new, high-volume or operationally critical. Inspect label placement, branch identification, route fit and host acceptance in the target equipment. Then freeze the approved configuration. That modest discipline is cheaper than reworking hundreds of correctly manufactured but incorrectly specified cables.

AOC and DAC Cable FAQ: Which Cable Should I Use, What Reach Is Available, and Will It Work with My Switch?

These are the questions network teams ask most often before replacing transceiver-and-patch-cord links with direct-attach assemblies. The useful answer always depends on the equipment pair and installed route. Cable category names alone do not establish compatibility, length suitability or breakout support.

Which cable should I use: AOC or passive DAC?

Use passive DAC for a short direct connection where copper reach and cable stiffness suit the route. Use an AOC where the run is longer or the cable must travel through a dense, less forgiving path. Confirm the port supports the selected assembly type and that the connector form factor matches both ends.

What reach is available for AOC and DAC cables?

Available reach depends on the cable family, form factor, speed application and construction. Passive DAC is intended for shorter direct-attach runs; AOC is generally selected where more reach is needed. Provide the measured installed path, not a straight-line rack distance, and OPTONE can identify the appropriate available length.

Will an OEM-compatible cable work with my switch?

It can be supplied for stated platform requirements, provided the port mode, form factor and intended cable type are correct. Give the exact switch, server, storage or appliance models at both ends, plus the planned breakout configuration. Compatibility testing addresses the specified host requirement; it does not override platform restrictions or incorrect port configuration.

Request an AOC or DAC Cable Quote from OPTONE: https://fibertransceiver.com/contact/

Send OPTONE a link schedule rather than a broad request for “compatible cables.” Include endpoint makes and models, port form factors, target speed, native or breakout topology, route length, required coding, quantities, labeling needs and delivery destination. For a replacement order, include the existing approved part number and any device software or port-mode changes made since the original installation.

OPTONE serves telecom operators, data center operators, ISPs and enterprise network teams in more than 80 countries. That range of deployments makes clear documentation particularly valuable: a cable accepted in a lab should be ordered with the same configuration for the production site. Use the contact request to confirm available custom lengths, volume packaging, MOQ, lead time and compatibility requirements before committing a rack rollout.
