AOC & DAC Cables: Understanding Their Importance

AOC vs DAC cable difference

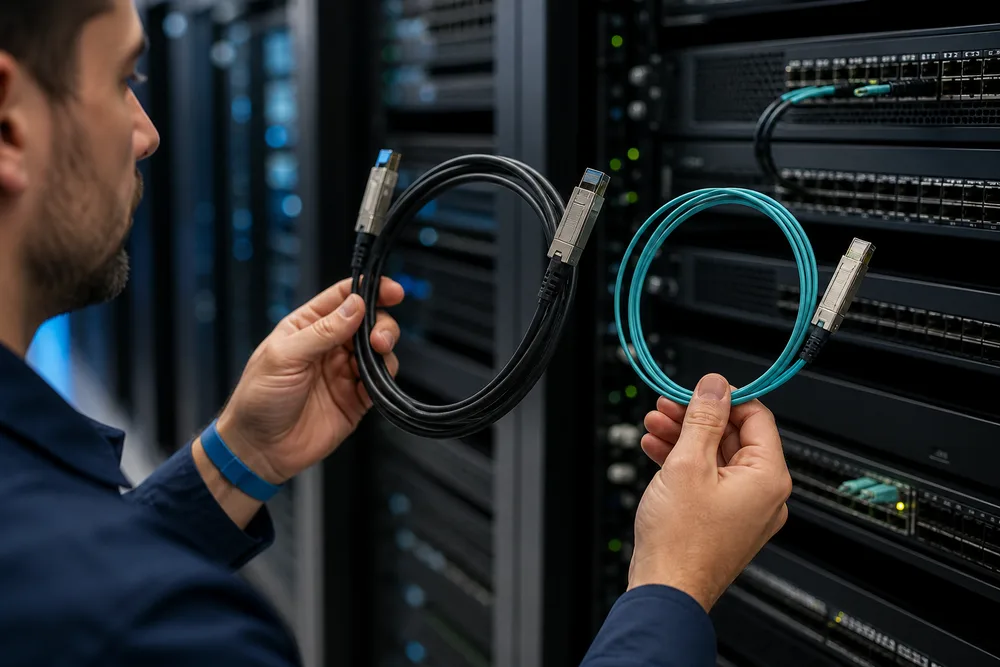

The central AOC versus DAC cable difference is the transmission medium. A direct attach copper, or DAC, cable uses shielded twinaxial copper conductors terminated with transceiver-style ends. An active optical cable, or AOC, contains optical fibre and built-in optoelectronic components at each end. Both are sold as fixed assemblies for high-speed switch, router, storage, and network-interface ports. Neither is simply a loose patch cord with removable optics.

That construction changes the buying decision. Copper is usually less costly, mechanically familiar, and highly effective across short distances. It is also heavier and less pleasant to route through a crowded overhead tray or a packed rear cable manager. Fibre inside an AOC is lighter and generally easier to manage over longer paths, but the cable ends contain active components and the assembly must be handled as an optical product rather than pulled like bulk copper.

The overlooked detail is **EEPROM-based cable identification**. Each end of a DAC or AOC contains memory that reports its form factor, supported signalling characteristics, manufacturer information, and other identification fields to the host port. Network equipment uses those fields during link bring-up. That is why two cables with identical-looking connectors can behave differently in the same switch. Physical fit is only step one; host acceptance and the intended speed mode decide whether the link actually comes up.

Factor	DAC cable	AOC cable
Signal path	Twinax copper	Optical fibre with integrated electronics
Best fit	Short equipment links	Longer structured equipment links
Cable handling	Heavier, thicker, more resistant to casual handling	Lighter, but requires careful bend and pull handling
Power in cable	None for passive; present for active versions	Required for integrated optical conversion

when to use AOC cables

Use an AOC when a copper DAC becomes awkward because of reach, weight, routing, or port density. A common case is a link from a top-of-rack switch to servers spread across more than one cabinet, or a connection between network gear and storage placed beyond the practical copper run. An AOC preserves the tidy, integrated-cable approach without requiring separate optical transceivers and separate fibre jumpers.

They are particularly useful where cable bundles are large. Copper twinax has real bulk. Multiply that bulk across dozens of high-speed links and cable management can turn into a serviceability problem: restricted airflow, difficult port tracing, and a rear door that does not close cleanly. AOCs reduce bundle weight and diameter, though they are not indestructible. Pulling one by the connector boot, crushing it under a rail, or forcing a tight bend near the module can damage the fibre or the active end.

Choose an AOC only after confirming that both hosts support the cable’s form factor and intended lane configuration. Some assemblies are directional, especially where the ends are labelled for host and target roles or where a breakout arrangement is involved. The connector may seat perfectly in either port while the link remains down because it has been installed backwards. Read the label before dressing the cable into the rack.

when to use DAC cables

Use a DAC for short, predictable links inside a rack or between immediately adjacent cabinets. Switch-to-server, switch-to-storage, and leaf-to-leaf connections are typical examples. The cable is a sensible default where the route is short enough because it avoids the cost and handling sensitivity of optical assemblies. Passive DACs are especially attractive where the port hardware can drive the copper channel without help from electronics in the cable.

DACs also make fault isolation straightforward. You are dealing with a copper assembly, not an optical conversion stage at both ends. That does not mean every DAC is interchangeable. The host still reads its EEPROM, and many enterprise switching platforms enforce approved-vendor coding or have software controls that affect third-party cable acceptance. A low-priced cable bought solely because its connector resembles the installed port can create a frustrating commissioning delay.

Copper has a physical downside that shows up late in a project. A thick DAC bundle can obstruct access to power supplies, fan trays, or server release latches. It can also place sustained side load on densely spaced ports if the cable is bent too sharply at the connector. Plan the cable exit direction, service loop, and rack depth before selecting lengths. Buying extra length “just in case” is how a clean rack becomes a copper nest.

DAC cable compatibility guide

A DAC compatibility check begins with the port, not the cable description. Identify the exact interface form factor on each device, the speed mode the port is configured to use, and whether the equipment expects a straight cable or a breakout assembly. Then check the switch, router, storage controller, and network interface card documentation for supported cable types and any vendor qualification policy. A port can support multiple modes, but not necessarily with every cable construction.

Next, verify coding. Some platforms accept cables coded for a broad range of hosts; others expect their own vendor identifier and may log warnings, reduce functionality, or refuse the link. Firmware also matters. A cable accepted on an older network operating system may be rejected after a platform update, while newer software can add support for previously unsupported assemblies. Keep the switch software release in the approval record instead of treating compatibility as a permanent yes-or-no answer.

Use this commissioning sequence before installing a full batch:

1. Record the exact device model, port type, software version, and intended link speed at both ends.
2. Match those details against the cable supplier’s compatibility matrix and the host vendor’s supported-accessory documentation.
3. Test one cable in the real port pair, then inspect link status, error counters, and cable diagnostic information where available.
4. Approve the production order only after the test link remains stable under normal traffic and thermal conditions.

Do not overlook breakout topology. A multi-lane connector at one end may divide into several lower-lane connectors at the other, but the switch port must support that exact breakout mode. A compatible connector family does not automatically make a breakout pinout compatible.

AOC cable compatibility guide

AOC compatibility follows the same basic host checks as DAC compatibility, with a few extra failure points. Confirm the form factor, speed mode, lane count, and EEPROM coding first. Then confirm the assembly direction and the approved installation orientation if the product is marked by end. Standard duplex-style AOCs are often less confusing than breakout versions, but no optical cable should be assumed to be reversible without checking its marking and documentation.

Because an AOC contains active optical conversion electronics, host power and thermal behaviour matter. The cable draws power from the ports, and high-density equipment has a finite thermal budget around the front panel. In a lightly populated lab this is rarely visible. In a heavily populated switch, many active cable ends operating together can affect port-area temperature and airflow. Follow the host manufacturer’s population guidance rather than treating every port as electrically and thermally identical.

Installation handling is part of compatibility in practice. An AOC that passes a bench test can fail after being pulled through a sharp-edged opening or cinched tightly to a vertical manager. Observe the manufacturer’s minimum bend guidance, avoid crushing points, and pull using the approved method. Also verify the cable length against the actual route, including vertical rise and service access. A cable that reaches only under tension may work initially, then develop an intermittent fault after the first maintenance visit.

passive DAC vs active DAC cable

Passive and active DAC cables both use copper, but they solve different channel problems. A passive DAC has no signal-conditioning electronics in the cable. It relies on the host transmitter and receiver to maintain signal quality across the copper path. That simplicity brings low power use, low heat at the connector, and a generally attractive cost position. For short links, it is usually the first option worth evaluating.

An active DAC adds electronics that condition the electrical signal. Those components can extend the useful copper reach or support a channel that would be marginal with a passive assembly. The trade-off is clear: the cable draws power from the host port, produces some heat, and introduces active circuitry into what might otherwise be a very simple link. It is still copper, so it does not inherit the routing advantages of fibre-based AOC.

Buyers often make the wrong comparison by asking which is “better.” Neither is universally better. The practical question is whether the passive cable meets the required route and link mode with comfortable margin. If it does, an active design adds cost and port power draw without solving a real problem. If it does not, active DAC may be the right bridge between passive copper and AOC. Test it in the intended equipment, especially where racks run warm or ports are fully populated.

AOC cable for data center networking

An AOC cable for data center networking is most useful in the space between short copper interconnects and a fully modular optical channel. It is a good fit for leaf-spine links within a pod, switch-to-storage connections that cross cabinets, and high-density server clusters where the cable route is too long or too congested for twinax. The integrated construction removes separate transceiver and patch-cord pairing from the bill of materials, which can reduce ordering and installation mistakes.

That convenience has a limitation: an AOC is a fixed-length assembly. If one end fails, or if the route changes materially, you replace the whole cable. With removable optics and separate fibre, individual components can be changed independently and fibre routing may be more adaptable in a structured-cabling design. For a stable pod layout, AOC is often a clean answer. For a facility with frequent moves, changes, and long pathways, modular optics and installed fibre may be easier to maintain over time.

Document each AOC by source port, destination port, length, and direction during deployment. Labels should be readable without disconnecting the link. This seems mundane until a failed server has to be swapped under pressure and the technician is tracing nearly identical black cables through a dense vertical manager. Good labelling prevents accidental cross-connects and makes future capacity work much less disruptive.

DAC cable for switch to server connection

A DAC cable for switch to server connection remains one of the most practical links in a modern rack. The distance is usually short, the endpoints are known, and the cable can connect a switch port directly to a server network adapter without separate optics. This makes DAC especially effective for top-of-rack designs, where servers feed a nearby access switch and physical paths are controlled.

Start with the server NIC rather than assuming the switch is the only compatibility authority. Network adapters can have their own firmware behaviour, approved cable lists, and speed-negotiation requirements. A switch that accepts a cable may not establish a stable link with a particular adapter. Check both sides, including the server vendor’s supported NIC firmware where that information is available. In mixed-vendor environments, test the exact switch-to-NIC pairing before standardising it across a fleet.

Pay attention to mechanical strain. Server ports are often close to power supplies, cable arms, and sliding rails. Leave a service loop that allows the server to extend for maintenance without pulling the DAC against its connector. Do not use a cable that is just barely long enough. On the other hand, avoid excessive slack: thick copper loops trap heat and make it harder to identify the right host during an outage. The correct length is the one that supports service movement without creating a bundle.

how to choose AOC or DAC cable

Choose based on the real route, not the straight-line distance between rack units. Measure the path through horizontal and vertical management, account for the equipment’s connector position, and allow for service access. If the route is short and cable bulk will not create an operational problem, DAC is typically the sensible choice. If the path is longer, cable density is high, or copper weight and bend stiffness will complicate the build, move to AOC.

Then work through the non-negotiables: form factor, port speed, lane arrangement, host coding, and firmware support. Cost should come after those checks. A cable that saves money per unit but causes a delayed rack turn-up, failed link qualification, or emergency replacement does not save money. This is especially true for breakout assemblies, where one incorrect host mode can invalidate an entire set of downstream connections.

Environmental conditions deserve a place in the decision as well. Passive DAC imposes no cable power draw. Active DAC and AOC place active components at the port face, so dense deployments require attention to host power and thermal guidance. Consider serviceability, too. Copper tolerates everyday handling better; AOC makes dense routing easier but needs more discipline during installation. Ask your supplier for a cable matrix tied to the exact endpoint models, then retain one qualified sample from each lot for acceptance testing.

AOC and DAC cable length limitations

Length limitations are not a single number that applies to every AOC or DAC. They depend on interface generation, signalling method, wire gauge and construction for copper, the active electronics used, the host port’s capabilities, and the environment in which the cable operates. A passive DAC has the tightest practical reach because the electrical signal must travel the complete copper path without in-cable conditioning. Active DAC can extend copper use, while AOC is generally selected when the route moves beyond what is practical for copper.

Do not use a catalogue maximum as a design target without validating the intended hardware pair. A link can appear healthy during a short idle test, then show errors under sustained load or after a rack warms up. Review port counters after installation, including physical-layer and receive-error indicators exposed by the platform. If the cable supports diagnostics, collect that information as part of commissioning rather than waiting for an intermittent outage.

How far can a DAC cable run?

DAC reach is determined by its passive or active construction, the interface type, and the host equipment. Passive DAC is intended for the shortest runs. Active DAC can support longer copper routes, but you should use the supplier’s qualified length for the exact switch and adapter pair rather than assuming one limit applies to all ports.

Are AOC cables better than DAC cables?

No. AOC is better where longer reach, lower cable weight, and dense routing matter. DAC is often better for short in-rack links because it is simpler and commonly less expensive. The right choice follows the route, compatibility requirements, thermal budget, and service plan.

Can you connect an AOC or DAC cable to any compatible-looking port?

No. The connector must fit, but the port must also support the cable’s form factor, speed mode, lane arrangement, and EEPROM coding. Check switch and NIC documentation, then validate one cable in the actual endpoint pair before deploying a larger quantity.
