Fiber Media Converter Types: How to Match the Converter to the Link

Start With the Two Endpoints, Not the Media Converter Label

Most fiber media converter mistakes begin with a product search instead of a link diagram. A buyer sees an RJ45 port at one end, fiber at the other, and orders a converter that appears to bridge the two. Then the link stays dark because the Ethernet rates, optical wavelengths, fiber types, or remote interfaces do not match.

A media converter is only one component in that path. It converts the physical media used to carry Ethernet; it does not automatically reconcile every electrical, optical, and protocol difference between the endpoints. Start by identifying what each connected device actually supports, then work inward toward the converter.

Map the Complete Path: RJ45 Device, Converter, Fiber Plant, and Remote Endpoint

Document the path in order: the local Ethernet device, copper patch cable, converter copper port, converter optical interface, installed fiber, remote optical interface, remote converter or switch, and the final Ethernet device. For each point, record the supported Ethernet rate, connector, fiber mode, strand count, wavelength, and management or PoE requirement.

Do not describe the fiber plant as simply “fiber.” A duplex multimode run terminated with LC connectors is a different design problem from a single-strand single-mode link using paired WDM wavelengths. Connector adapters can solve a physical mating issue, but they cannot correct the wrong fiber mode or an incompatible optical budget.

Classify Converter Types by Ethernet Rate and Interface Design

The first useful classification criterion is electrical rate. OPTONE’s converter categories cover 10/100M through 10G applications, but those labels must be read carefully. The second criterion is optical interface design: fixed optics or a replaceable SFP-family module. These two decisions affect compatibility, spares, commissioning, and future changes more than enclosure styling does.

Do Not Assume 10/100M, Gigabit, and 10G Converters Handle Speed Changes the Same Way

A converter rated for multiple Ethernet speeds may negotiate supported copper-side rates, but that does not mean every model performs arbitrary rate conversion between its copper and fiber interfaces. Some devices extend one Ethernet rate over another medium; others include specific conversion behavior. The data sheet and test sample must settle that question.

Check both endpoints rather than specifying “Gigabit” from memory. A legacy controller may have a 10/100 copper port, while the aggregation switch expects a fixed Gigabit optical interface. Likewise, selecting a 10G fiber media converter does not prove that the attached copper device, cabling, optical module, and remote port all support the same 10G Ethernet implementation. Rate, duplex behavior, and auto-negotiation settings can each prevent link establishment.

Fixed-Fiber Ports Simplify a Known Link; SFP Slots Preserve Optical Flexibility

A fixed-fiber converter integrates the optical interface. It is a practical choice when the fiber type, reach class, wavelength, and connector will remain stable. There are fewer removable parts to specify, and field technicians cannot accidentally insert an unsuitable module.

A fiber media converter with an SFP slot separates the converter from the optical choice. You can select a module for single-mode or multimode fiber, change connector or reach requirements where supported, and stock one converter platform for several link designs. That flexibility creates another compatibility checkpoint: the SFP, converter, remote optic, and fiber plant still have to be approved as a working combination. OPTONE’s broader optical transceiver and media converter catalog can be used to evaluate those components together rather than as unrelated line items.

Match the Optical Path as a System, Not as Separate Parts

Verify Single-Mode or Multimode Fiber, Connector, Strand Count, Wavelength Pairing, and Peer Compatibility

Optical matching is where superficially correct orders fail. First confirm whether the installed cable is single-mode or multimode. Then identify the connector at both ends—such as SC, LC, ST, or FC—without assuming the same connector appears on every device. Check the end-face specification and condition as well; a dirty or mismatched connection can produce intermittent errors rather than a clean failure.

Next, establish whether the link uses two strands or one. Conventional duplex links normally use separate transmit and receive paths. Single-strand WDM designs use paired units with complementary transmit and receive wavelengths. Ordering two identical WDM sides is a common purchasing error: the connectors fit, yet neither receiver sees the wavelength it expects.

Finally, compare the optical capability of both peers with the actual link. Reach labels are not a substitute for checking module compatibility, fiber condition, patch panels, splices, and any passive components in the path. Excess loss can come from workmanship as easily as distance.

OPTONE’s Deployment Options Cover PoE, Industrial, Managed, Standalone, and Chassis Designs

Deployment format is a separate classification from Ethernet speed and optics. OPTONE manufactures commercial, industrial, PoE, WDM, managed, unmanaged, standalone, and chassis-based converters, including DIN-rail designs, wide-temperature options, and 14-slot or 16-slot chassis systems. The right category depends on the installation and operating model, not just the packet rate.

Converter design	Use it when	Specification buyers often miss
PoE fiber media converter	The remote copper device must receive data and power near the fiber termination	PoE standard, available power, device class, and local input-power arrangement
Industrial converter	The unit sits in a cabinet, plant, roadside enclosure, or other demanding site	Operating-temperature range, power input, grounding, mounting, and alarm needs
Managed converter	Operations staff need status, configuration, fault visibility, or centralized oversight	Which parameters are actually exposed and how the unit integrates with monitoring practices
Unmanaged standalone unit	A single, stable point-to-point extension needs minimal configuration	Access to power, LEDs, fiber cleaning, and physical replacement
Chassis-based converter	Many conversion links terminate in one equipment room	Slot count, power architecture, cooling, management model, and spare-card policy

Do not use an industrial label as a substitute for reading environmental limits. Temperature is only one concern. Power quality, vibration, grounding, enclosure protection, and connector access can decide whether a unit remains serviceable. For volume projects, OPTONE also positions its fiber connectivity products for OEM/ODM supply, compatibility support, testing, and global fulfillment; buyers should still approve the exact configuration rather than a product family in general.

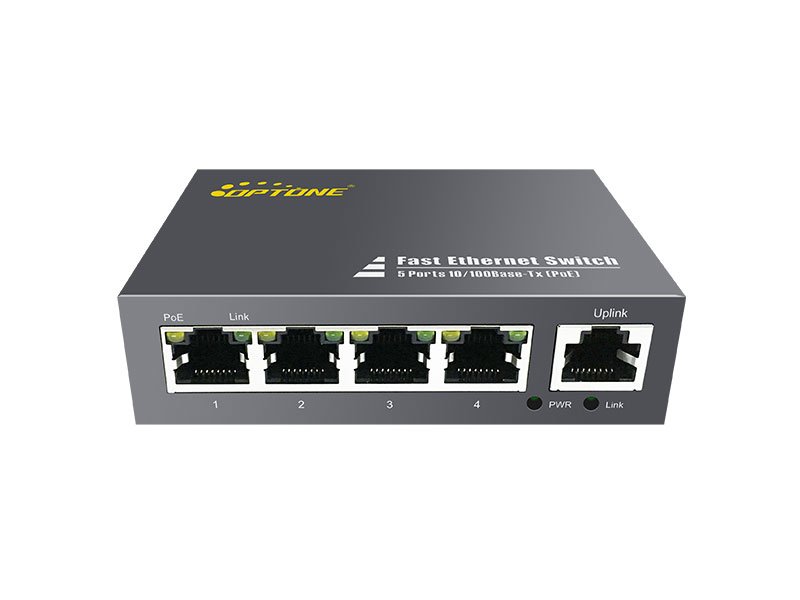

Choose a Media Converter or a Switch With SFP Ports Based on the Network Job

A converter is usually the cleaner answer for one or a few point-to-point links where the job is media conversion. It preserves the existing copper endpoint and avoids adding switching functions that the site does not need.

A switch with SFP ports makes more sense when several devices must be aggregated, VLANs must be handled, traffic requires switching policies, or the site needs one managed platform instead of multiple converter boxes. The trade-off is operational scope: replacing a standalone converter may affect one circuit, while servicing a shared switch can affect every link connected to it.

Count ports, but also count failure domains, power supplies, management touchpoints, rack space, and spare types. Buying several inexpensive converters can become awkward if each uses a different adapter or optic. Buying a switch for a single transparent extension can add configuration and troubleshooting work without improving the link.

Use Link Symptoms and an Approval Checklist to Validate the Exact Configuration, Sample, and Compliance Evidence

A dark fiber LED usually points toward optical mismatch, reversed transmit and receive paths, contamination, excessive loss, or a disabled interface. A lit optical link with no Ethernet traffic shifts attention toward speed, duplex, negotiation, VLAN, or endpoint configuration. Intermittent service often calls for inspection of connectors, marginal optical levels, power stability, temperature, and copper cabling rather than repeated converter replacement.

Can converters from different vendors work together? Often they can when both sides implement compatible Ethernet optics and interface behavior, but the brand name alone proves nothing. Can a single-mode converter run over multimode fiber, or vice versa? Do not plan a production link that way unless the complete optical design has been specifically engineered and validated.

Before approving a media converter fiber link, close the purchase specification with this checklist:

• Confirm the Ethernet rate and negotiation behavior at both endpoints.
• Identify fixed optics or the exact supported SFP interface.
• Match single-mode or multimode fiber, connector type, strand count, and wavelength pairing.
• Verify peer compatibility across the full link, not just at each device separately.
• Define PoE requirements, if any, including the powered device and available power.
• Specify commercial or industrial environmental limits, mounting, grounding, and input power.
• Choose managed, unmanaged, standalone, or chassis deployment based on the operating model.
• Test a representative sample with the intended fiber plant, endpoint equipment, and optics.
• Review the supplier’s test records, applicable compliance evidence, labeling, and approved bill of materials before volume release.
