Fiber Media Converters and 14/16-Slot Chassis for Centralized Copper-to-Fiber Links in 2026

A remote IP camera, access-control panel, wireless access point, or machine controller may still present a copper Ethernet port even when the only sensible backbone path is fiber. Fiber media converters solve that interface mismatch. The harder part begins when a deployment grows from two links to a dozen: loose power adapters, inconsistent converter types, and no clear way to isolate a failed link from the rest of the installation.

OPTONE addresses that scale-up point with standalone and card-type fiber media converters, plus the OPT-R14 and OPT-R16 chassis. The chassis are intended to centralize converter power, cooling, and physical organization rather than turn a converter fleet into a mystery box. Match the converter format to the correct chassis first. That one decision prevents a surprisingly common purchasing error.

Key Takeaways: Choosing OPTONE Fiber Media Converters, OPT-R14, and OPT-R16

The useful distinction is not simply 14 slots versus 16. It is the relationship between a converter’s mechanical format and its central power platform. OPT-R14 is identified for standalone 10/100M or 10/100/1000M converters. OPT-R16 is identified for card-type versions. A card converter is designed to be inserted into its matching chassis; a standalone unit is normally an individually housed converter that can also be accommodated by the appropriate standalone chassis design.

On first review, pay close attention to Dual Hot-Swappable Load-Sharing Power Architecture. OPTONE describes the chassis with two hot-swappable, load-sharing power supplies. In practical terms, two installed supplies share the chassis load during normal operation, while hot swapping allows a supply to be replaced without taking the converter chassis out of service, subject to site procedure and the installed configuration. That is meaningful in a security headend or telecom room where disconnecting every copper-to-fiber link to change one power module is not acceptable.

There is a limit to what a chassis can standardize. It does not make mismatched fiber wavelengths, connector types, link budgets, or Ethernet requirements disappear. Treat the chassis as the central platform; treat each media converter pair and fiber path as a link that still needs to be specified correctly.

OPTONE Fiber Media Converter Portfolio: Commercial, Industrial, PoE, WDM, and 10G Ethernet-to-Fiber Options

OPTONE’s fiber media converter range covers commercial, industrial, PoE, WDM, and 10G Ethernet-to-fiber products. That breadth matters because “media converter” is an umbrella term, not a complete requirement. A basic copper-to-fiber conversion requirement for a cabinet indoors is different from powering a field device over Ethernet, extending a link through a single-fiber WDM path, or handing off a higher-speed Ethernet connection to fiber.

Commercial converters are generally the starting point for controlled indoor locations. Industrial models should be considered where ambient conditions, power conditions, enclosure practices, or site maintenance differ from a normal communications room. PoE converter selections require extra discipline: establish which end supplies power, what the powered device needs, and how the full path will be powered. A fiber span carries data, not PoE power, so the far-end arrangement must be planned rather than assumed.

WDM media converters are relevant where a deployment needs bidirectional transmission over one fiber strand using paired wavelengths. The pairing has to be correct at both ends. Installers sometimes see a matching connector and assume the link should work; a wrong wavelength pairing will not be fixed by changing patch cords. For 10G Ethernet-to-fiber applications, also verify the Ethernet interface type and the intended optical interface before a purchase order is released.

For centralized builds, use the OPTONE 14/16-slot media converter chassis page as the starting point for format compatibility, then document the converter model needed for each endpoint. The cleanest bill of materials separates chassis requirements from per-link requirements. It makes substitutions and future additions much easier to control.

OPT-R14 vs. OPT-R16: Compatibility, Capacity, Converter Format, and Power Options

The OPT-R14 and OPT-R16 serve the same broad purpose—centralized management of fiber media converter links—but they are not interchangeable shelves. OPT-R14 is a 14-slot chassis for standalone 10/100M or 10/100/1000M media converters. OPT-R16 is a 16-slot chassis for card-type converter versions. Do not decide between them only by asking which has more positions. Select the chassis that accepts the converter housing you intend to deploy.

Both products are described with dual hot-swappable load-sharing power supplies, dual cooling fans, and slot power isolation. Slot power isolation is valuable during fault handling because attention can be directed to an individual converter position rather than treating a single fault as a reason to interrupt the entire chassis. The actual operational outcome still depends on diagnosis, installation quality, and the condition of the connected copper and fiber plant.

Selection point	OPT-R14	OPT-R16
Chassis capacity	14 slots	16 slots
Intended converter format	Standalone 10/100M or 10/100/1000M converters	Card-type converter versions
Power system stated by OPTONE	Dual hot-swappable load-sharing supplies	Dual hot-swappable load-sharing supplies
Power input options	AC 100–240V or -48V DC options	AC 100–240V or -48V DC options
Cooling and protection features stated	Dual cooling fans; slot power isolation	Dual cooling fans; slot power isolation

Ask the supplier to confirm the chassis, power-input version, converter family, and fiber interface as one reviewed package. That is more reliable than ordering a chassis on one line and treating converter cards as an unrelated purchase.

Standalone vs. Card-Type Fiber Media Converters: How to Select the Right Chassis Format

Standalone fiber media converters are self-contained units. They suit small jobs, remote cabinets, temporary additions, and sites where only one or two conversions are required. Their attraction is obvious: place one converter at each end of a link and power each locally. Their weakness appears at concentration points, where a wall of individual units brings a wall of adapters, outlet strips, labels, and failure points.

Card-type converters move the enclosure and power relationship into a shared chassis. That is usually the cleaner choice where many terminations arrive at one equipment room. Card replacement can be more orderly, cable routing is easier to audit, and centralized power removes many separate adapters from the rack. It does not automatically suit every site. A remote endpoint still needs a compatible device and a suitable local power arrangement.

The selection process should begin with physical format, then follow the service requirement. If the converter family is a standalone 10/100M or 10/100/1000M product intended for the OPT-R14, select OPT-R14. If the required family is card-type, select OPT-R16. Do not attempt to force a standalone housing into a card chassis position or assume that an electrical Ethernet speed label establishes mechanical compatibility.

Buyers also overlook future maintenance. If field technicians stock standalone replacements because that is what is installed at remote ends, a centralized location may still benefit from the matching standalone chassis approach. If the network team already manages a card-based inventory, the 16-slot card-type path can be more consistent. Standardize only where the operating model supports it.

Selecting AC 100–240V or -48V DC Power for a Fiber Media Converter Chassis

AC 100–240V is the natural choice for many enterprise communications rooms, surveillance headends, and general-purpose network racks supplied from standard mains distribution. The -48V DC option is more familiar in telecom environments with a DC power plant, battery-backed distribution, and established polarity, protection, and maintenance procedures. Neither is inherently better. The right choice is the one that fits the power system already supporting the site.

Do not treat power input as a late-stage option. Confirm it before procurement, because a chassis built for an AC-fed rack is not a substitute for equipment intended to connect to a -48V DC plant. Ask the electrical or facilities owner which feed is available at the installation point, how it is protected, and who is authorized to work on it. For DC systems, follow the site’s polarity and grounding conventions rather than copying a practice from an unrelated cabinet.

The dual hot-swappable load-sharing supply arrangement deserves an operational plan as well. Decide who holds a spare module, how a failed module will be identified, and what maintenance window or live-replacement procedure applies on site. Redundancy reduces exposure to a single supply failure; it does not excuse poor power documentation or overloaded upstream circuits.

Before commissioning, label the chassis feed, the converter positions, and the far-end device or location. A correct fiber link can still be unnecessarily hard to restore if a technician cannot identify which converter position serves a particular gate, camera pole, floor, or production cell.

OPTONE’s Standalone-and-Card-Type Path for Consolidating Copper-to-Fiber Links in a 19-Inch Rack

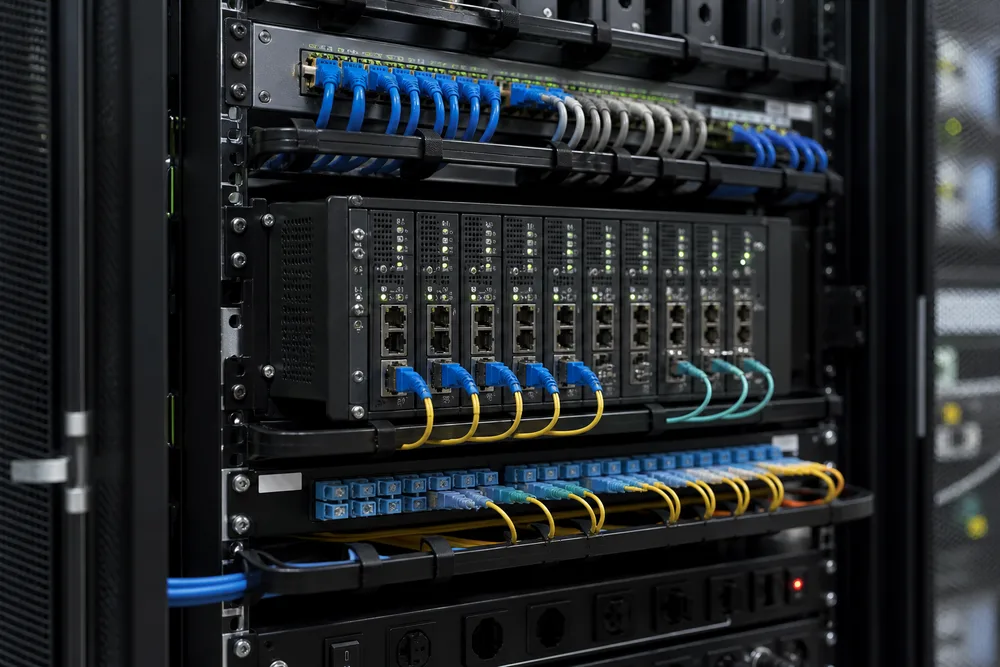

A 19-inch rack is where dispersed copper-to-fiber links become an operations issue. Fiber patch leads, copper cords, converter status indicators, power modules, and documentation all meet in one place. The purpose of centralizing links is not just a tidier rack. It is to make each service traceable and maintainable without disturbing adjacent circuits.

OPTONE’s separate standalone and card-type chassis paths let you align the central rack with the converter format selected for the job. The OPT-R14 supports the stated standalone 10/100M and 10/100/1000M converter use case. The OPT-R16 supports card-type versions. For either route, leave adequate room for fiber bend management, patch-field access, and airflow around the chassis. A packed rack with sharply bent fiber leads or blocked fan paths will create maintenance trouble long before it looks full on a drawing.

Build a port map before installation. Record the chassis slot, copper-side endpoint, fiber route or patch-panel position, converter model, and any WDM pairing information. This is especially useful in video surveillance deployments, where a fault may be reported by camera name while the rack only shows a fiber label. It also helps enterprise network teams distinguish a local copper problem from an optical-path problem.

For project teams comparing centralized formats, review the OPT-R14 and OPT-R16 chassis options alongside the exact converter models. That pairing is the basis of a workable rack design, not the slot count in isolation.

Chassis-Plus-Converter RFQ Workflow, Available Documentation, 3-Year Warranty, and Compliance Verification

A good RFQ gives the supplier enough information to confirm a compatible chassis-plus-converter combination. “Need fiber media converters” is not enough. It leaves unanswered questions about Ethernet speed, copper presentation, fiber strand count, connector choice, operating environment, local power, and whether the central location needs standalone or card-type hardware.

1. Map every link. Identify the copper device or switch port, the far-end equipment, and where conversion is required.
2. Specify the Ethernet and power requirement. State the required copper interface and identify any PoE need rather than assuming it is included.
3. Define the optical path. Provide fiber type, available fiber count, connector requirements, route conditions, and required transmission distance.
4. Choose the converter format. State standalone for the OPT-R14 path or card-type for the OPT-R16 path, subject to supplier confirmation.
5. Confirm chassis power and support documents. Request the AC 100–240V or -48V DC version needed, relevant product documentation, warranty terms, and compliance evidence required by the destination market.

OPTONE states a 3-year warranty for the chassis page. Keep the warranty record with the final model list and serial information where applicable. Compliance needs must be verified against the exact product configuration and destination requirements; do not assume that documentation for one converter family, power version, or sales region automatically applies to another.

Ask for available datasheets, installation information, and declared compliance documentation before shipment if the project has formal acceptance requirements. This is particularly relevant for operators, ISPs, data center teams, and multinational integrators managing approved-vendor processes. The official OPTONE chassis listing is the appropriate reference point for opening that discussion.

Fiber Media Converter Chassis FAQ

Chassis questions tend to arise after a converter list has already been drafted. That timing is backwards. The central chassis affects converter format, power architecture, spares planning, physical rack work, and serviceability. Confirm those items alongside the first converter selection, particularly where a project combines legacy Fast Ethernet links with Gigabit links or includes remote PoE equipment.

The answers below reflect the stated OPTONE chassis positioning. For a final order, have OPTONE or the authorized supplier validate the exact chassis configuration and every converter model in the proposed bill of materials. It is the sensible check when products are being deployed across multiple sites or under a fixed installation schedule.

Can OPT-R14 hold card-type fiber media converters?

No. OPT-R14 is specified as a 14-slot chassis for standalone 10/100M or 10/100/1000M media converters. OPT-R16 is the chassis identified for card-type converter versions. Select the chassis based on the converter’s mechanical format, not merely the number of converter positions needed.

If your existing list contains card-type units, verify them against OPT-R16 before ordering. If it contains standalone units, validate the specific standalone converter family for the OPT-R14 arrangement. Mixing the terms “card” and “standalone” in an RFQ without clarification is a common source of incorrect quotes.

Which OPTONE chassis supports 10/100M and 10/100/1000M converter deployments?

OPT-R14 is specified for standalone 10/100M or 10/100/1000M media converter deployments. OPT-R16 is specified for card-type converter versions. The required Ethernet speed does not replace the need to confirm the converter format and its exact chassis compatibility.

Also verify the fiber-side requirement for each link. A 10/100/1000M copper-side converter may still need different optical choices depending on the fiber installed, connector standard, strand availability, and route requirement. The chassis organizes compatible converters; it does not determine the optical design for you.

Request an OPT-R14 or OPT-R16 Chassis and Fiber Media Converter Quote for B2B or Individual Projects

Send a link list rather than a generic request. Include the number of central converter positions, the preferred OPT-R14 standalone or OPT-R16 card-type route, Ethernet interface requirements, fiber details, endpoint environment, and AC 100–240V or -48V DC power preference. If your project includes PoE, WDM, industrial equipment, or 10G Ethernet-to-fiber links, mark those lines clearly so they are not quoted as ordinary commercial converter connections.

For individual projects, a simple endpoint-to-endpoint sketch and photographs of the available fiber connector and rack area can eliminate confusion. For B2B procurement, attach the bill of materials, destination country, requested documents, expected delivery schedule, and spare-parts expectation. Ask for written compatibility confirmation before releasing the order, especially if the deployment is an expansion of an existing converter installation.
