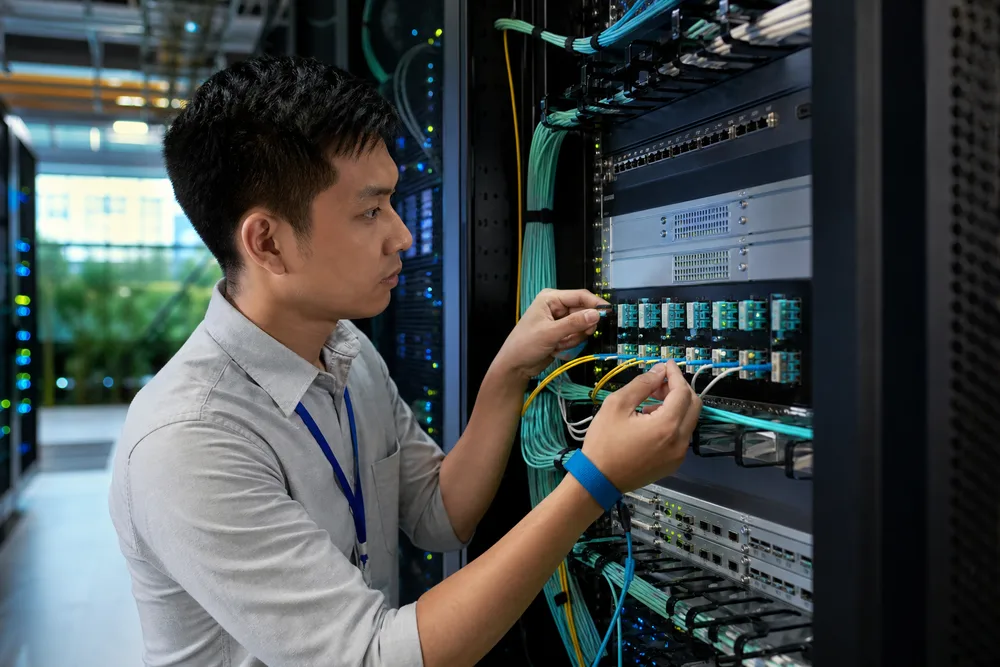

Network engineer checking labeled optical transceiver modules, LC fiber patch cords and switch ports in a Southeast Asian data center

Key Takeaways for Optical Transceiver Procurement

An optical transceiver is only a small part of the link, but it is often where a rollout stalls. The module may physically fit the port and still fail because the host expects a different speed, a different EEPROM identity, single-mode rather than multimode fiber, or a duplex connection where the installed plant has only one strand available. Those are not theoretical edge cases. They are regular causes of rejected modules, unstable links and rushed replacement orders.

Start with the switch or router port, then work outward to the cabling and distance. Price comparison belongs near the end of the process, not the beginning. For projects moving equipment between Singapore, Malaysia, Thailand, Indonesia, Vietnam and the Philippines, also confirm the documentation your importer, customer or site team needs before goods leave the factory. A technically sound module without the requested paperwork can still become a procurement problem.

Key Takeaways

  • Match the host port’s form factor and speed before selecting an optical transceiver.
  • Confirm fiber type, connector, strand count and end-to-end reach as one set of requirements.
  • OEM compatibility is a host-platform question; MSA dimensions alone do not guarantee acceptance.
  • Use DDM/DOM readings to investigate optical power, temperature and supply-voltage warnings after installation.
  • Request the applicable compliance, test and compatibility documents for the exact selected module, not a generic product-family file.

OPTONE supplies optical transceivers across 1G to 800G, alongside AOC/DAC cables, media converters and fiber Ethernet switches. That breadth is useful only if the technical brief is clear. Give the supplier the host model, port type, fiber details and link requirement in the first enquiry; it cuts out the usual round of assumptions.

Optical Transceiver FAQ: Will It Work with My Switch, Which Fiber and Connector Do I Need, and How Do I Confirm the Required Reach?

Direct answer: it will work only when the module’s form factor, host-side interface, programmed compatibility, optical interface, fiber type and supported reach all match the link you are building. A module with the right front-panel shape is not automatically correct. For example, an LC connector tells you the connector family, not whether the module is for single-mode or multimode fiber, nor whether it is designed for two fibers or a single BiDi strand.

Confirm requirements from both ends of the link. Read the port label and platform documentation, inspect the installed fiber where possible, and identify any existing module that is known to work. Then state the physical route length rather than guessing from a building plan. Patch panels, risers and intermediate distribution frames matter. They add connectors, and each dirty or poorly mated interface is another place for optical loss or reflection to appear.

How do I choose between SFP, SFP+, SFP28, QSFP28, QSFP56, QSFP-DD and OSFP?

Direct answer: choose the form factor the host port was designed to accept, then select the speed and optical variant that the platform supports in that port. SFP, SFP+ and SFP28 are closely related physically, but they are not interchangeable from a host-speed perspective. The same principle applies at higher densities: QSFP28, QSFP56, QSFP-DD and OSFP support different electrical lane arrangements and thermal expectations depending on the host system.

Do not buy a higher-speed module assuming the switch will negotiate down to the rate you need. Some platforms support specific breakout modes; others do not. Some ports accept only approved combinations of form factor, line rate and firmware version. Ask for the switch or router model and the precise port designation to be checked. If you are refreshing a mixed estate, make a port-by-port schedule. It is less glamorous than a single bulk order, but it prevents SFP28 modules turning up for SFP+ access ports or 400G optics being specified for a chassis that has no supported 400G mode.

Can a third-party optical transceiver work in Cisco, Juniper, Huawei, Arista, Dell or HPE equipment?

Direct answer: yes, a third-party module can work when it has been selected and coded for the specific host platform, but acceptance is not universal and should be verified before deployment. Cisco, Juniper, Huawei, Arista, Dell and HPE platforms can differ by hardware generation, network operating system release, port mode and vendor-validation policy. Two switches carrying the same badge may not behave identically.

MSA compliance covers common mechanical and electrical conventions for pluggable modules. It does not force every equipment vendor to accept every module identity. A practical verification request includes the exact device model, software version where available, port speed, desired optic type and any existing approved part number. Test a sample in the actual production platform if the project is large, sensitive or uses older equipment. That is the sensible way to catch an identification alarm, unsupported-module message or missing diagnostic reading before hundreds of links are installed.

Optical Transceiver Form Factors and Network Speeds: A Comparison Table for 1G to 800G

Form factor is a starting point, not the final specification. The table below describes common associations in Ethernet networks, but a host vendor’s support matrix always takes precedence. A QSFP28 cage, for instance, is widely used for 100G but may support other configured modes on particular equipment. Higher speed also changes the practical installation question. Dense 400G and 800G deployments can have tighter thermal limits, stricter cabling requirements and less tolerance for casual substitutions than a 1G access link.

OPTONE’s stated portfolio spans the form factors below, from SFP through OSFP. Use the table to frame your enquiry, then provide the switch model and link architecture for a compatibility check. The choice between multimode, single-mode, BiDi or wavelength-multiplexed optics remains separate from the cage type.

Common network speed Typical form factor Buyer check before ordering
1G SFP Confirm optical fiber versus copper SFP, connector and host support.
10G SFP+ or XFP Verify the actual port cage; XFP and SFP+ are not physically interchangeable.
25G SFP28 Check host port mode and the optical interface required at the far end.
40G QSFP+ Confirm native link or supported breakout arrangement.
100G QSFP28 Match lane and connector architecture to the host and structured cabling.
200G QSFP56 Check platform support, thermal design and any breakout requirements.
400G QSFP-DD or OSFP Verify host cage, supported optics, airflow and fiber plant design.
800G QSFP-DD or OSFP Confirm exact platform generation and the intended optical interface before quoting.

Match port form factor, interface speed and host-platform requirements before comparing prices

The cheapest quote can be the most expensive result if it is based on an incomplete description. A supplier needs to know more than “100G QSFP.” Is it a standard duplex LC link, a parallel-fiber interface, a single-fiber wavelength option, or a breakout design? Does the switch port run at its native rate? Is the module required to identify for a named equipment platform? These distinctions change the part selection.

Keep a copy of the host vendor’s supported-transceiver guidance with your bill of materials. Then compare like with like: same form factor, same interface, same reach class, same fiber type, same coding requirement and the same diagnostic capability. If an installed module has a readable label, photograph both sides and record its serial or part reference. That evidence is more useful than a verbal description sent through several layers of purchasing.

When to consider BiDi, CWDM/DWDM, AOC/DAC cables or copper SFP alternatives

BiDi optics are useful where a duplex fiber pair is unavailable and a compatible single strand can be allocated. The two ends use complementary wavelengths, so they must be ordered as a matched pair. Mixing the wrong pair is a common site error. CWDM and DWDM optics are considered when multiple channels need to share fiber through compatible wavelength-multiplexing equipment. They solve fiber-capacity constraints, but they add design discipline: channel plan, passive components, link budget and maintenance records must all agree.

AOC and DAC cables are often the cleaner answer for short equipment-to-equipment runs inside a rack or adjacent racks. They avoid separate transceiver-and-patch-cord selection, although their fixed cable assembly limits changes later. Copper SFP modules can suit Ethernet connections over suitable twisted-pair cabling where the port and required distance are supported. They may draw more power or run warmer than fiber optics in some applications, so do not pack them densely without checking the switch guidance.

How to Select the Right Optical Transceiver: A Step-by-Step Compatibility Checklist

A good selection process separates facts from assumptions. You are trying to prove that the host accepts the module and that the optical path can carry the signal with enough margin for real installation conditions. Start at the active equipment, because it dictates the cage and often the permitted interface options. Then inspect the cable route and both ends of the connection. This sequence sounds basic, but projects frequently begin with a fiber inventory or a low-priced module list and only later discover a port-mode mismatch.

Use a written checklist that engineering, procurement and the installer can all read. It creates a record when a replacement is required months later, and it prevents a project manager from treating “SFP” as a complete technical specification. The following steps are deliberately practical.

  1. Identify the host port. Record equipment make, exact model, port label, intended speed and software information if available.
  2. Capture the existing working part. Note its form factor, optical interface, connector and any visible OEM reference.
  3. Map the fiber path. Confirm fiber type, strand count, connector end faces, patching route and approximate installed path length.
  4. Select the optical architecture. Decide between duplex, single-fiber BiDi, parallel-fiber or wavelength-multiplexed design based on the actual plant.
  5. Request compatibility validation. Submit the collected details with the quantity and deployment country.
  6. Test before full rollout. Bring up a representative link, inspect diagnostics and retain the final approved part details.

Collect the switch or router model, port details, existing module information and link requirements

Equipment model numbers are not administrative detail. They are the basis of a compatibility decision. A family name alone is often too broad, particularly where a vendor has several hardware revisions or line cards. Include the model of both endpoints if they differ. If you are replacing a working optic, its label may reveal the form factor and interface, but do not assume its reach or coding is the right answer for a new route.

Describe what the link must do: native connection, inter-switch uplink, server connection, carrier handoff or spare-stock replacement. Identify the required speed and whether the port is expected to break out to several lower-speed links. A clear request sent to OPTONE’s optical transceiver team should include photographs where labels or port markings are unclear. That is faster than ordering from a generic description and opening an RMA case after delivery.

Validate fiber type, connector, duplex or single-fiber design, reach and operating environment

Fiber color is not sufficient proof of fiber type. Check cable markings, plant records or test documentation. Confirm the connector at each active end as well; adapters and patch cords can disguise what is actually installed behind a panel. Duplex links need two fibers with transmit and receive correctly crossed. BiDi links use one fiber but require complementary endpoints. A reversed duplex polarity is boring, common and easily mistaken for a bad module.

Reach must cover the full installed route, not the straight-line distance between buildings. Do not select an excessively long-reach optic by default, either. The correct choice depends on the module’s supported distance and optical characteristics, the fiber path and any passive components. For outdoor cabinets, hot communications rooms or sites with unstable housekeeping, discuss operating conditions early. Heat, dust on connector faces, bent patch cords and poor cleaning practice cause more field faults than most buyers expect.

Fiber Type, Connector Choice and Link Distance: What Buyers Must Verify Before Ordering

Single-mode and multimode fiber are different transmission media. Their labels, core design and supported optical interfaces must agree with the selected module. Connecting the wrong type may produce no link at all or a link that behaves badly after a change in temperature, patching or traffic. Ask what fiber is installed; do not infer it from the application. Older campuses and newer data halls can contain several fiber types, sometimes in the same building.

Connector selection is equally specific. LC is common for duplex optics, while other interfaces may be used for parallel-fiber designs. The connector on the module, the patch cord, the cassette and the trunk must form one coherent chain. Inspect polish type and cleanliness where relevant. A contaminated end face can reduce received power enough to create intermittent errors, especially after a technician disturbs a patch lead during unrelated work.

Distance is not just a number on a drawing. Record the route, patch panels, splices and any wavelength components. For a link near the edge of its design limit, obtain appropriate fiber test information and have the selected optical interface reviewed. On a short link, avoid the equally careless assumption that any optic will be safe: certain designs may require attention to received optical power and the overall channel arrangement. Buyers who document both endpoints and the passive path get fewer surprises during commissioning.

OPTONE’s MSA-Compliant, OEM-Compatibility-Tested Optical Transceiver Approach

OPTONE describes its modules as MSA compliant and supports compatibility testing for OEM platforms including Cisco, Juniper, Huawei, Arista, Dell and HPE. OEM Compatibility Testing is the process that matters here: the selected module is assessed against the stated host requirement rather than treated as a generic pluggable part. In practical terms, host recognition can involve the module’s EEPROM identification fields, vendor and part information, alarm thresholds and diagnostic reporting behaviour, alongside physical link operation. The exact checks and acceptance behaviour remain platform-dependent.

This approach is more useful than a blanket claim that a module is “compatible with everything.” Buyers should still provide full host details and validate a sample in a critical environment. Firmware changes can alter what an equipment platform reports or accepts. Network policies can also prohibit third-party optics regardless of technical function. Be candid about those constraints at the quotation stage.

MSA compliance helps with common mechanical fit and interface conventions across the optical transceiver category. It does not replace a supported-platform check, fiber-path validation or installation testing. For mixed-vendor networks, request the required compatibility profile for each endpoint rather than assuming one code will cover every device in the warehouse.

How DDM/DOM monitoring supports installation, troubleshooting and ongoing link visibility

DDM, also called DOM, gives the host access to module diagnostic information such as temperature, supply voltage, transmit optical power and received optical power where supported. Those readings are valuable because they help separate a probable fiber problem from a port, power or module issue. If received power changes after a patching job, for example, the installation team has a useful clue before replacing hardware blindly.

Diagnostics are not a substitute for proper optical testing, and their interpretation needs context. A reading that looks unusual may still be within the module’s published alarm limits; a normal reading does not rule out intermittent connector contamination or a host-side fault. Use the values as a trend and compare the two ends of a known-good link. During acceptance testing, capture baseline readings. Months later, that record can show whether a marginal path has degraded or whether the fault appeared suddenly after physical work.

Quality, Compliance and Documentation for Southeast Asian Import and Deployment Requirements

Compliance requests in Southeast Asia are rarely identical from one customer or importing entity to another. A data-centre operator may ask for material declarations and product test information. A distributor may need documents for customs or internal supplier approval. A public-sector or regulated project may have its own named submission list. Do not rely on a certificate screenshot attached to a catalogue page; ask for documents applicable to the exact module being quoted and confirm what your local importer requires.

OPTONE states that it can provide product-related documentation on request. Build documentation review into the purchasing schedule, especially if goods will be consolidated, re-exported or delivered into a project with formal submittals. Check that model description, revision and quantity references align with the order. A document for an adjacent form factor or a different optical variant may not satisfy the customer’s review team.

Quality control on site still matters after paperwork is approved. Inspect packaging and labels, keep electrostatic protection in place until installation, clean optical connectors using appropriate methods and record serial numbers for critical links. Those simple controls make fault isolation much easier across multi-site deployments.

How to request applicable CE, RoHS, FCC, test, compatibility and product documentation for the selected module

Make the request specific. State the selected form factor, speed, interface, intended host platform and destination country, then list the documents your customer or importer has requested. Depending on the module and project, this may include applicable CE, RoHS, FCC, test, compatibility or product documentation. The word “applicable” matters: requirements and document availability depend on the product configuration and destination, so it should be confirmed rather than assumed.

Ask for the files before issuing the final purchase order if documentation is a release condition. Keep them with the approved bill of materials, host-compatibility record and installation test notes. For an ongoing programme, agree a controlled part-number list so a later substitution is not made simply because two modules share the same port form factor. A supplier can help, but the buyer remains responsible for confirming local import, regulatory and customer requirements.

Request an OPTONE Optical Transceiver Quote and Compatibility Verification: https://fibertransceiver.com/

Send a quote request with the details that determine the answer: equipment make and exact model, port form factor, target speed, existing module reference if available, fiber type, connector, strand design, required route and quantity. Include photos of port labels and installed optics if the site records are incomplete. For BiDi, CWDM/DWDM, breakout and high-density data-centre links, say so in the first message; those designs should not be reduced to a generic speed request.

You can also ask for a pre-deployment compatibility review and the relevant documentation for the selected product. If the project is phased, identify the first site for sample validation and the expected follow-on quantities. That gives the supplier a workable technical brief and gives your team an approved reference before the wider order is released.
