What Are Optical Transceivers Used For?

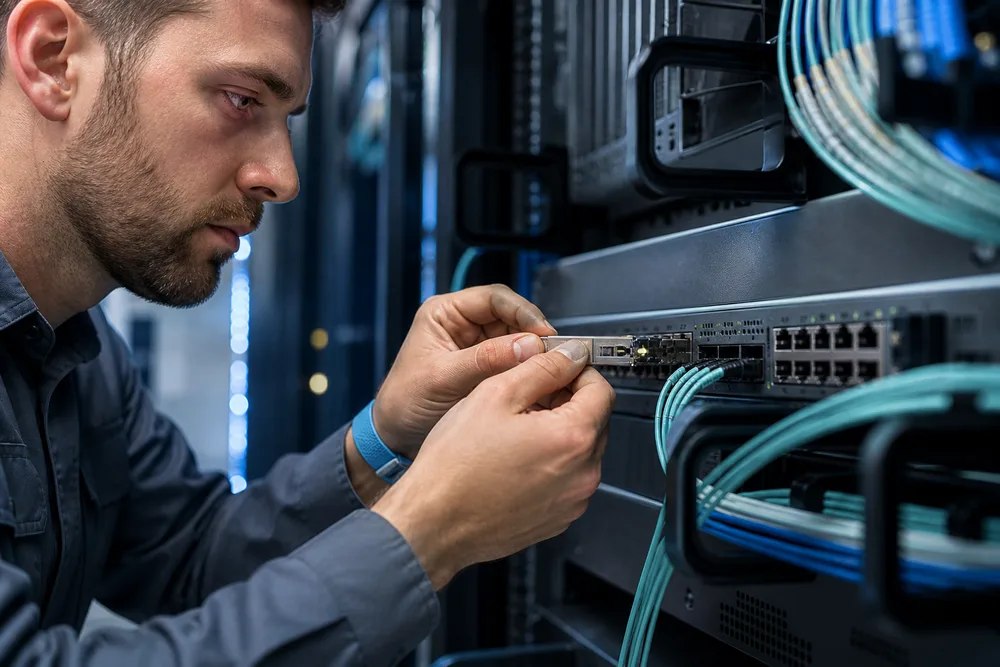

Optical transceivers let network equipment send and receive data over fiber. They plug into a compatible switch, router, server, storage system, or transport device, converting the host port’s electrical signal to light for transmission and converting received light back to an electrical signal.

That simple role covers a wide range of jobs: short links inside a data center, fiber runs between campus buildings, carrier access connections, mobile backhaul, and metro transport. The module is not a universal fix, though. It must match the installed port, the fiber already in the route, the intended link design, and the equipment’s compatibility requirements.

Optical Transceivers Connect Network Equipment to the Right Fiber Link

A pluggable transceiver is the interface between an active network port and a fiber cable plant. The port determines the supported form factor and electrical interface. The module determines how that interface operates over a particular optical link. Its connector, fiber mode, wavelength approach, reach rating, and diagnostic features all affect whether the link comes up and stays dependable.

This is why two modules that look similar are not automatically substitutes. A device may have an SFP-style cage, for example, but the host configuration, required data rate, and supported coding still matter. A module selected only by connector type can produce a link that never establishes, or one that works briefly but has too little optical margin for the actual route.

OPTONE manufactures optical transceivers across common pluggable families, including SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56, QSFP-DD, OSFP, XFP, copper SFP, BiDi SFP, and CWDM SFP. Its portfolio spans applications from 1G through 800G.

Where Optical Transceivers Fit in Data Center, Enterprise, Telecom, and Access Networks

The application drives the selection. A short equipment-row link and a carrier fiber route may both use pluggable optics, but they face very different constraints around density, fiber availability, monitoring, and distance.

High-Speed Server, Storage, and Switch Links in Data Centers

In data centers, optical transceivers connect servers to top-of-rack switches, switches to aggregation or spine layers, storage systems to the network, and sometimes separate buildings on the same site. Here, port density and existing cabling tend to dominate the conversation. A design may use multimode fiber for shorter in-building runs or single-mode fiber where the route and architecture call for it.

Form factor matters because it follows the host port. SFP modules are commonly associated with 1G links, while SFP+ is designed for 10G host ports. QSFP28 optical transceivers are widely used in 100G network designs, and higher-density families such as QSFP-DD and OSFP appear where the platform and network plan call for much greater interface capacity. A higher-capacity module cannot make an older host port operate at a higher rate.

Campus, Metro, Mobile, ISP, and Industrial Fiber Extensions

Outside the data hall, optics often extend Ethernet or transport links over installed fiber between buildings, cabinets, cell sites, access nodes, or metro locations. Telecom operators and ISPs may prioritize route reach, wavelength planning, and remote visibility. Campus teams often need to make practical use of an existing fiber count. Industrial deployments may place more emphasis on the actual operating environment and the equipment on each end.

A fiber media converter can also extend a network over fiber, but it serves a different role. It is a separate device, typically used to bridge a copper Ethernet interface to fiber. An optical transceiver is inserted directly into a compatible network device port. If the switch already has the proper fiber-capable slot, adding a media converter usually means adding hardware, power, and another failure point that the design did not need.

Why a Pluggable Transceiver Makes a Network Port Work Over Fiber

The module contains the optical transmit and receive components needed for the chosen link. On transmission, it accepts the electrical data from the host and sends a modulated optical signal into the connected fiber. On reception, it detects incoming light and returns the recovered signal to the host port.

Both ends must be designed as a pair. They need compatible speed and signaling, appropriate connectors, and optical specifications suited to the fiber path. Duplex links commonly use separate fibers for transmit and receive. Single-fiber designs use wavelength separation instead. Mixing up transmit and receive polarity on duplex fiber, pairing the wrong BiDi wavelengths, or connecting a single-mode optic to an unsuitable fiber route are ordinary field errors—not obscure edge cases.

Many modules also support digital diagnostic monitoring, often called DDM or DOM. Where available, those readings can expose operating information such as module temperature, supply voltage, laser bias current, and transmit or receive optical power. Diagnostics help you investigate a dirty connector, a bend or splice loss issue, or a receiver approaching its allowed input range before the complaint turns into an outage.

When BiDi, CWDM, and Higher-Density Transceivers Address Specific Link Constraints

BiDi SFP modules are useful when only one usable fiber strand is available. They transmit and receive on different wavelengths over that same strand, so they must be deployed as a matched complementary pair. This can defer new cabling work, but it does not excuse a poor fiber inspection or an unclear wavelength record.

CWDM transceivers address a different problem: carrying multiple optical channels using assigned coarse wavelength bands, often alongside wavelength-division components in the link design. They are selected around a documented channel plan, not simply because “CWDM” appears on a module label. The wrong wavelength, or a module chosen without checking the mux/demux arrangement, can make commissioning needlessly difficult.

Higher-density optical transceivers, including QSFP-DD models used in 400G designs, suit platforms that need more bandwidth per faceplate area. They are common candidates for high-capacity switch interconnects and data center fabrics. The trade-off is stricter planning: verify the host’s supported mode, the fiber architecture, connector arrangement, and any breakout design before ordering. Density is valuable only if the physical link and switch configuration support it.

Choose the Module Around the Installed Port, Fiber Route, and Operating Conditions

The best buying process starts with the link, not a product photo or an assumed part number.

Start With Host Form Factor, Required Speed, and Platform Compatibility

• Identify the exact device, port type, and required link speed at both ends.
• Confirm the host form factor: SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56, QSFP-DD, OSFP, XFP, or another supported interface.
• Check the equipment vendor and software environment. OPTONE states that it performs compatibility testing for platforms from Cisco, Juniper, Huawei, Arista, Dell, HPE, and other OEMs. Compatibility should still be confirmed for the specific platform and use case.
• Decide whether the connection is a direct optical link, a breakout arrangement, or a copper interconnect. These are different designs, even when the ports look similar.

Confirm Fiber Type, Connector, Link Design, Diagnostics, and Environment

Then inspect the route details. Determine the fiber type and strand count, connector type, actual path length, patch-panel losses, splice points, and whether the link is duplex or single fiber. Ask for the expected operating environment if the equipment will sit in an outdoor cabinet, factory area, or other nonstandard location.

Do not treat reach as a casual estimate. A route can be short on a drawing yet include enough connectors, contamination, or poor terminations to create trouble. If monitoring matters, specify the need for DDM/DOM support and make sure the host platform can read and present those diagnostics. OPTONE’s module range includes DDM/DOM-capable options; the applicable feature set should be confirmed against the selected module.

Common Deployment Questions and the Link Details to Send OPTONE

Can an optical transceiver work with a Cisco switch?

It can if the module form factor, speed, coding, and platform compatibility align with that switch and its software. Send the exact Cisco model and port information rather than relying on the switch brand alone.

Can I use an SFP module in an SFP+ port?

Some SFP+ ports support lower-speed SFP modules, but this is a host-specific capability. Check the device documentation and the intended speed before treating it as interchangeable.

What information is needed to select a BiDi module?

Provide the host ports, required rate, single-fiber route details, connector type, fiber type, and the wavelength of any existing module at the far end. BiDi pairs must be complementary.

What should I send for a quote or compatibility check?

Send the device make and model, port type, speed, fiber type, connector, route length, fiber count, deployment environment, and any diagnostics or OEM-compatibility requirement. With those details, you can discuss the appropriate OPTONE transceiver option before a mismatched module reaches the site.
